YAHE MODEL
XCMG75 interlocking kelly bar rotary drilling rig
| Model | XCMG DR-80 |
| Machine weight | 13T |
| Maxmum drilling depth | 15M |
| Drilling diameter | 350-1500MM |
| Engine brand | WECHAI WP3.2/CUMMINS(Optional) |
| Engine rated power | 55KW |
| Maximum lifting force of main system | 150KN |
| Maximum lifting force of auxiliary winch | 13KN |
| Working status length*width*height | 5400*2250*9400MM |
| Transport status length*width*height | 7500*2250*3200MM |
| Maximum torque of power head | 80KN.M |
| Tail swing radius | 2400MM |
01

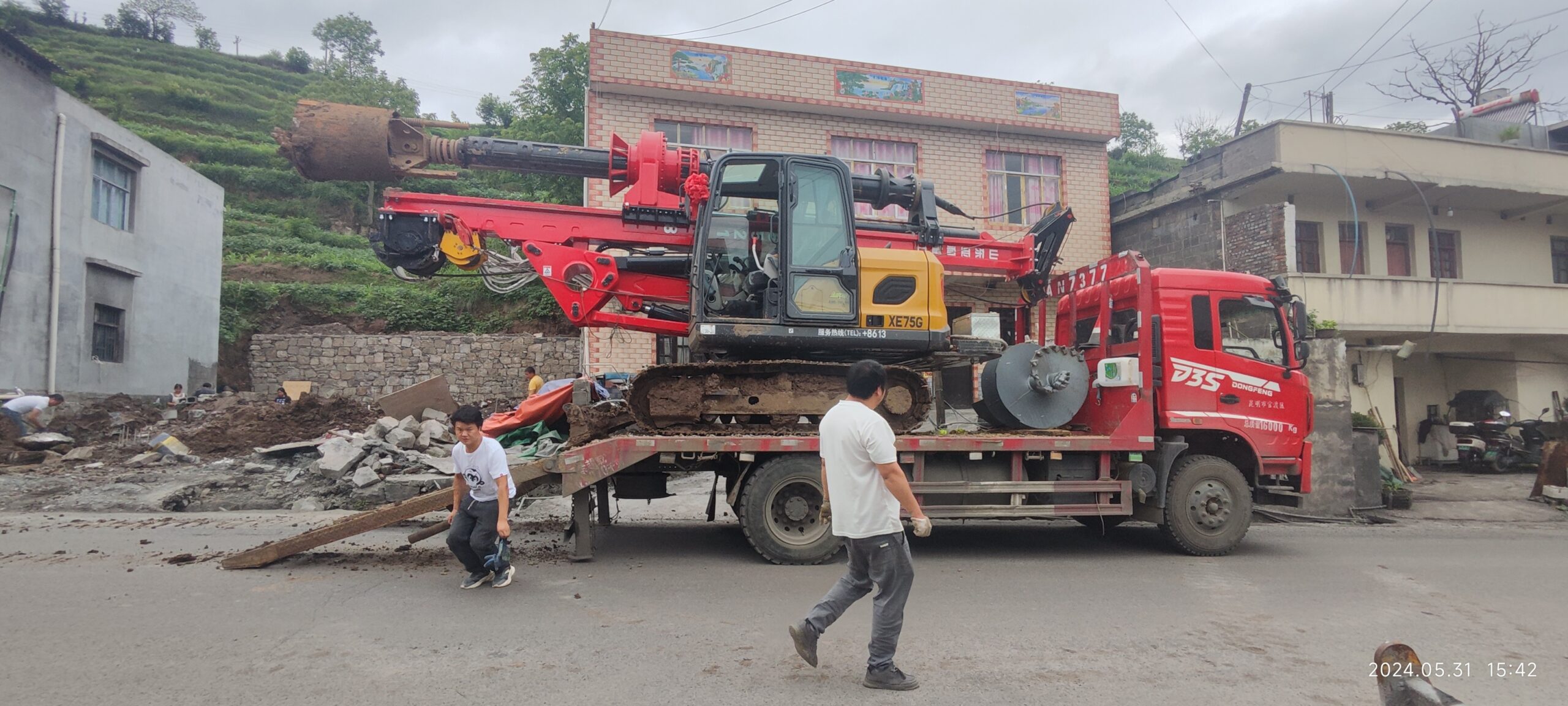

Easy transport
The tracks are retracted during transportation, and the small flatbed truck can be easily transferred. No need to go through the procedures for exceeding the limit.
02
Construction safety
The cab is equipped with a comprehensive protective cover and can be fitted with a cab pedal.
03
Efficient and convenient
Different types of drill bits can be selected according to geological conditions, such as spiral drill bits, cylindrical drill bits, coring drill bits, drilling drills, and expansion drill bits.
04
Economy and fuel saving
powerful, reliable and durable, low fuel consumption and low operating cost.
